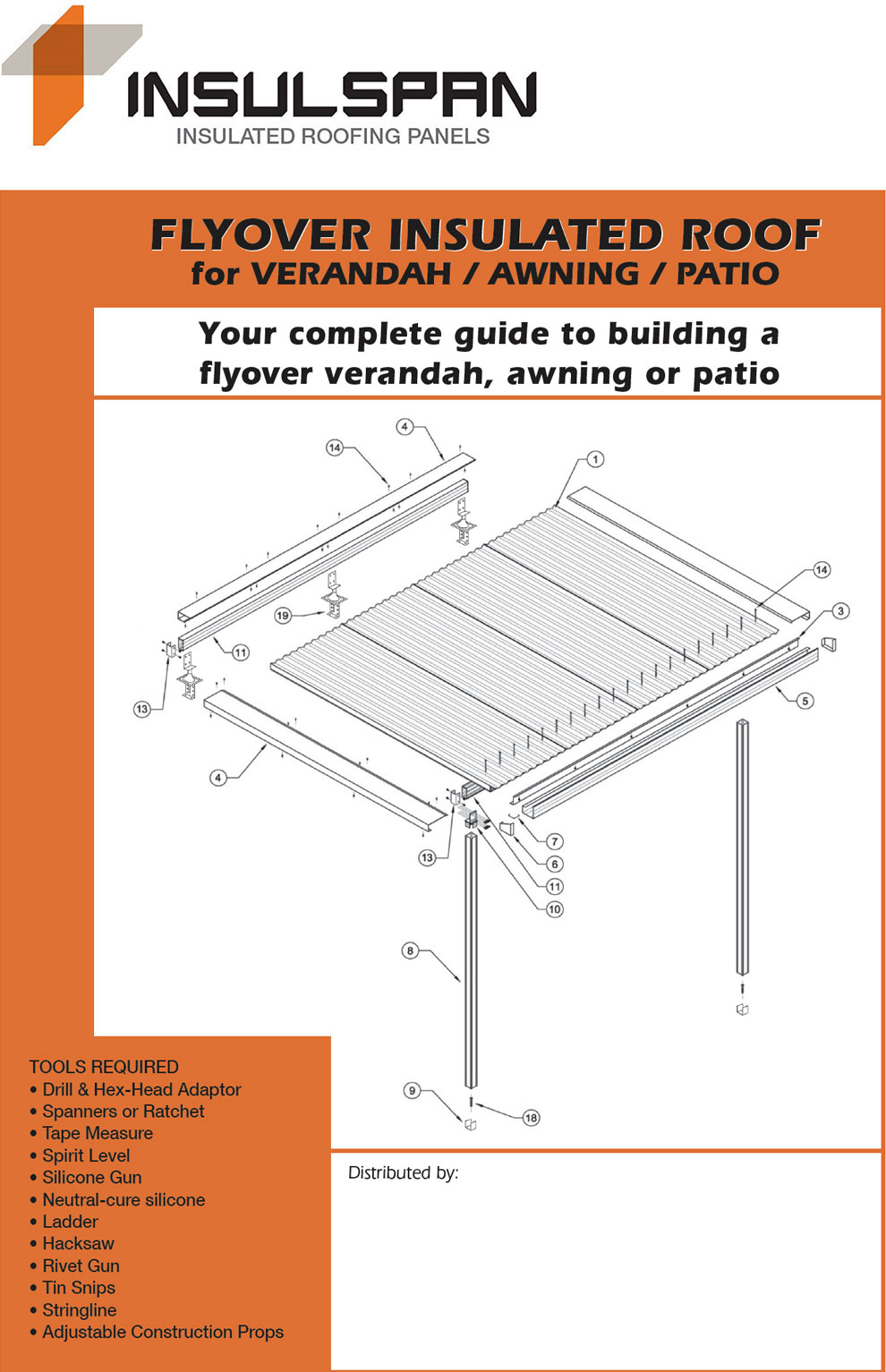

Insulspan Technical Specifications



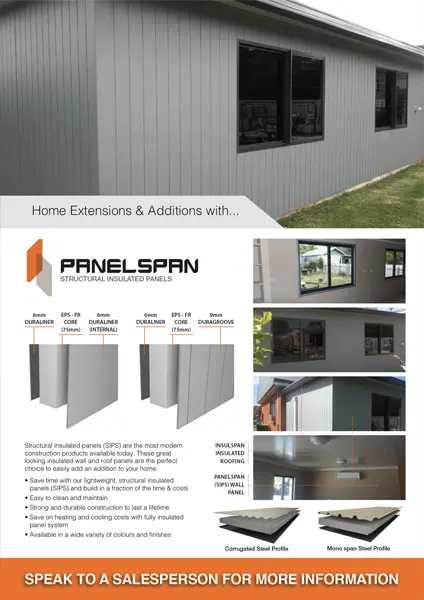

Monospan Steel Profile

Corrugated Steel Profile

Insulspan Corro/Corro



Wind Classification as per AS4055:2012 Valid for both Monoclad/Trimdeck and Corrugated 0.42 BMT Top Sheet with 0.5mm BMT underskin

Fire Hazard

Early Fire Hazard AS 1530.3
Index	Test Range
Ignitability	0-20	12
Spread of Flame	0-10	0
Heat Evolved	0-10	3
Smoke Developed	0-10	5

Spans for building and conditions not complying with the above parametres should be referred to a Structural Engineer.

Panel Weight

	50 mm	75 mm	100 mm	125 mm	150 mm
Kg/ m2	8.8 kg/m2	9.1 kg/m2	9.3 kg /m2	9.5 kg /m2	9.7 kg /m2



Insulation Factors

	50 mm	75 mm	100 mm	125 mm	150 mm
R Value m/ Kw	1.39	2.09	2.78	3.48	4.18

Standard Products

EXTERNAL	CORE	INTERNAL
Monospan Corrospan( corrugated iron) Selected Colours (Please contact your nearest PTI branch for further details)	'SL' Grade expanded Polystyrene with flame retardant additive	0.5mm Off white steel

Colours





Slimline Roofing Technical Specifications



Size

PRODUCT		WIDTH	LENGTH	FINISH
	Slimline W 300	300mm cover	Cut to order min. 250mm	W Pan
	Slimline FLAT 300	295mm cover	Cut to order min. 250mm	Flat Pan



Roof Sheet Details

THICKNESS	SUBSTRATE	WEIGHT	GLOSS LEVEL
0.42mm (BMT)	AZ150 G550	5.76	80%



Fire Hazard

Early Fire Hazard AS 1530.3
Index	Test Range	Skin
Ignitability	0-20	0
Spread of Flame	0-10	0
Heat Evolved	0-10	0
Smoke Developed	0-10	1



Foot Traffic Limited Spans

THICKNESS	SPAN TYPE	MAX SPAN Controlled foot traffic (mm)	MAX SPAN 0.5kN ladder load (mm)
0.42	Single	2300	4500
0.42	Double	3000	4500
0.42	Cantilever#	500*	500

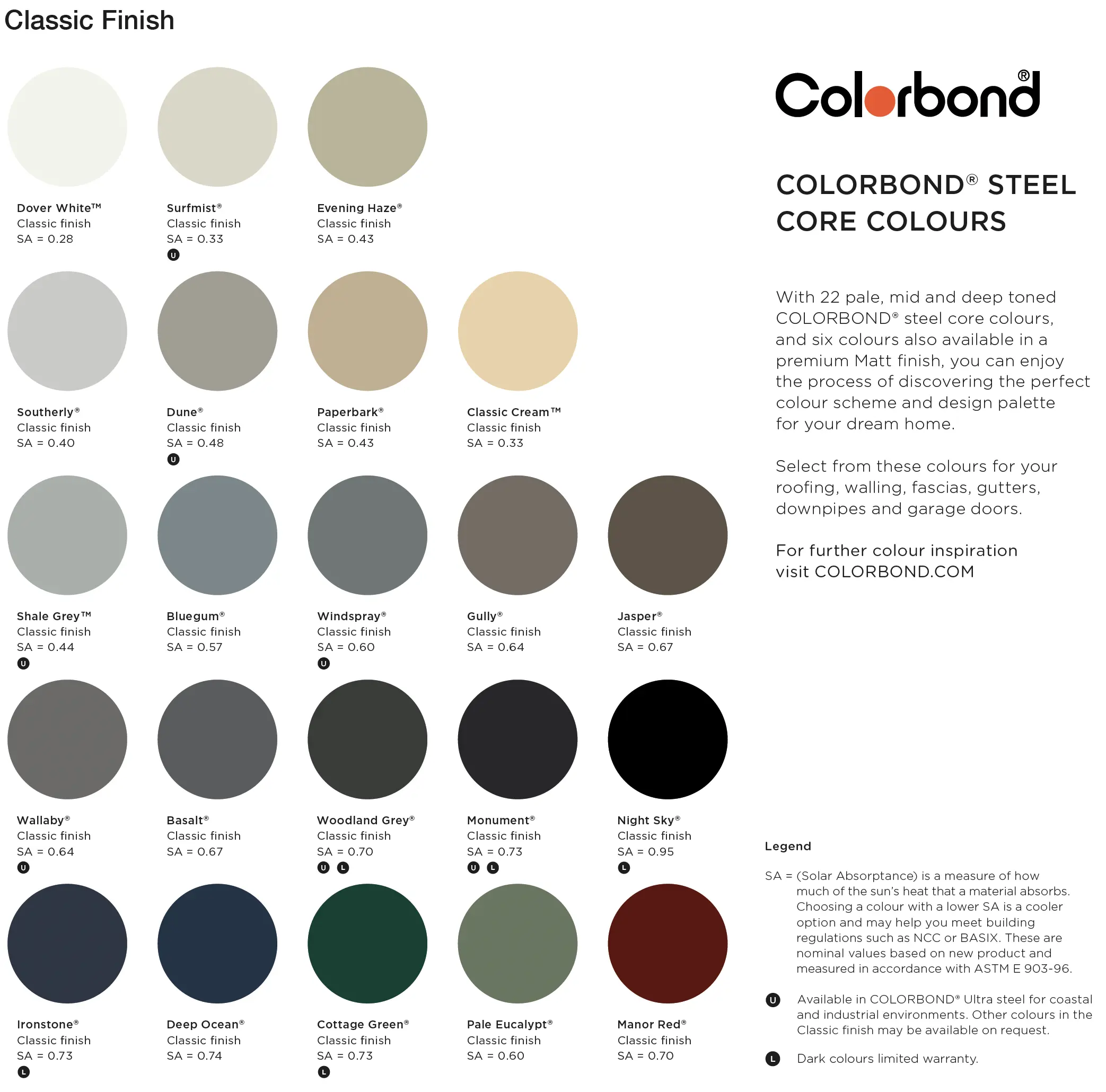

Colours & Finishes

TOP COLOUR	FINISH	BOTTOM COLOUR	FINISH
Pearl White	Colorbond	Pearl White	Gloss
Pearl White	Colorbond	Classic Cream	Gloss
Classic Cream	Colorbond	Classic Cream	Gloss
Classic Cream	Colorbond	Pearl White	Gloss
Monument	Colorbond	Pearl White	Gloss
